PN90PAL
MACHINE-MOUNTED 90mm (3-1/2") Wire Coil Nailer
The PN90PAL machine-mounted nailer is designed to drive up to a 3-1/2" nail. Built for high-speed/high-volume machine operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
- Machine-Mounted
- Pallet Assembly
- Crate Assembly
- Manufactured Housing
APPLICATIONS
FEATURES
AUTOMATION-GEARED
For machine-mounted applications
HIGH SPEED OPERATION
10 SHOTS/SECOND
PLUG & PLAY SETUP
Remote control valve assembly
ACTUATION SPEED BOOSTED
Geared with high flow driver guide
HIGH-FLOW END CAP
Fitted with 3/8" NPT for 3/8 air plug
ENLARGED 3/8" INLET
Boosts air refill speed
EXCLUSIVE COMPONENT TREATMENT
Special-treated nose and driver
TOOL SPECIFICATION
| Weight | 2.97 kgs (6.5 lbs) |
|---|---|
| Height | 350mm (13.8") |
| Width | 120mm (4.7") |
| Length | 302mm (11.9") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 1050 |
| Air Consumption (L/cycle @90psi) | 2.1 (4.4 cfm) |
FASTENER SPECIFICATION

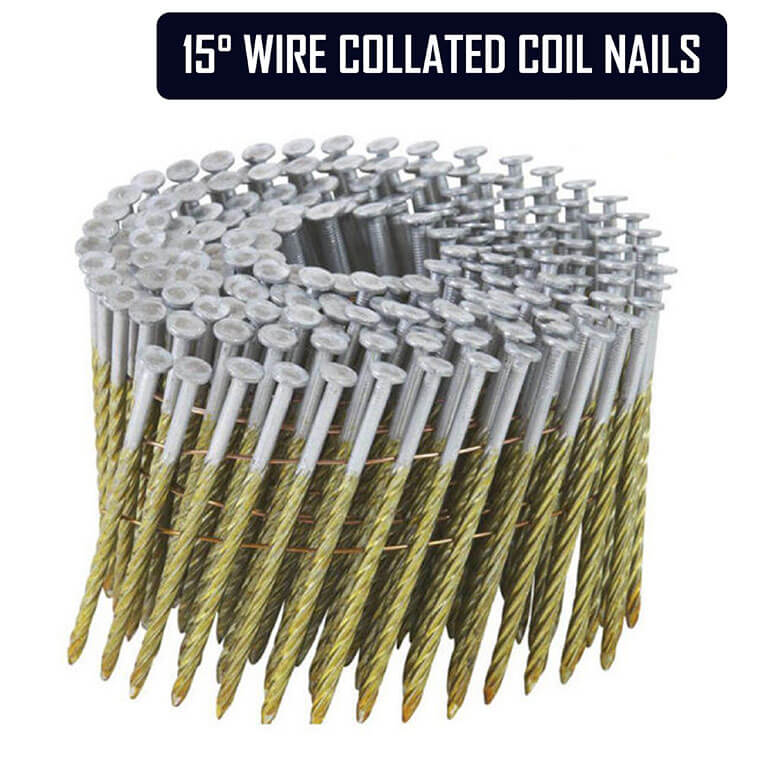

| Type | 15° Wire Collated Coil Nails |
|---|---|
| Loading Capacity | User Dependent |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 50~90mm (2"~3-1/2") |
| Nail Head Dia. | 6.5~7.7mm (0.256"~0.303") |
| Nail Shank Dia. | 2.5~3.8mm (0.099"~0.148") |
