MT-SB32-22

INDUSTRIAL 32mm (1-1/4") Crown Mechanical Side Post Stapler
Icon 002 Icon 010
If you want to achieve one of the strongest and safest closures of cartons, our foot-operated carton stapler series is an obvious choice. The SB Series - pneumatic/mechanical side arm stapler is designed for professional packaging jobs. Capacity is increased significantly if the machine is equipped with a pneumatic actuator. For stapling cardboard boxes in larger volumes, we recommend our AT series pneumatic models.
    APPLICATIONS
  • Stapling Corners on Corrugated Trays
  • Carton Box Sealing
  • Packaging
INQUIRY

FEATURES

DEPTH OF CLINCH AND PENETRATION ADJUSTABLE

Fully adjustable according to your sealing needs

SAFETY PRIORITIZED

Equipped with a safety foot pedal

MANUAL VERSION AVAILABLE (AT Series)

Provides flexibility when there is a lack of compressed air

PRODUCTION GRADE

Ideal for high volume production

HIGH SPEED OPERATION

50~100 carton bottoms per hour

NOISE MINIMIZED

Low noise engine

FULL MECHANICAL

No air source required

TOOL SPECIFICATION

Weight 26 kgs (57.3 lbs)
Height 1245mm (49")
Width 600mm (23.6")
Length 910mm (35.8")
Operating Pressure Mechanical Tool N/A
Driving Power (in-lbs @100psi) Mechanical Tool N/A
Air Consumption (L/sec @90psi) Mechanical Tool N/A

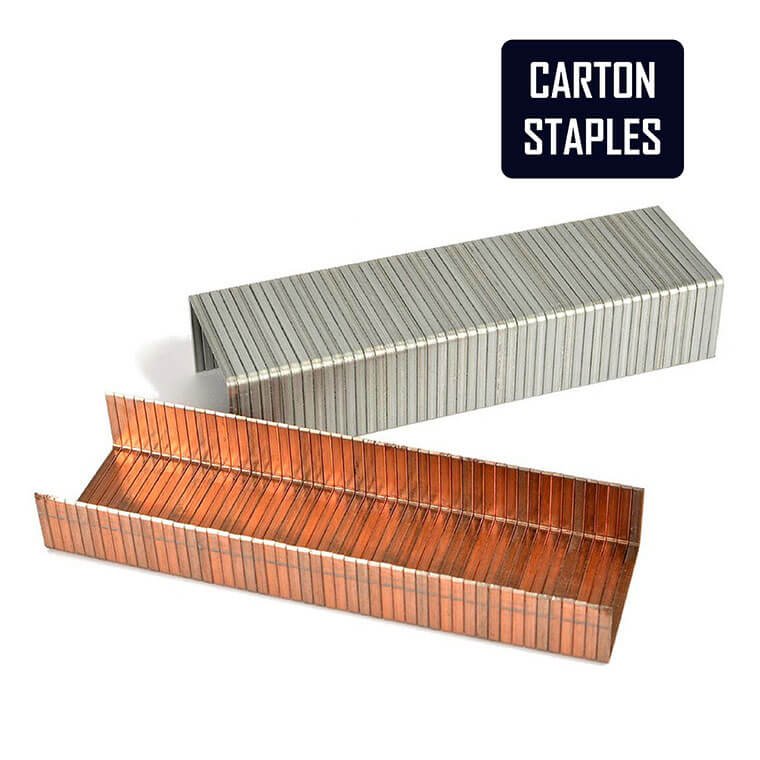

FASTENER SPECIFICATION

Type Mechanical Side Arm Stapler C
Loading Capacity 200
Shank Type Smooth
Staple Length 15, 18, 22mm (5/8", 3/4", 7/8")
Staple Crown Width 32mm (1-1/4")
Staple Wire Dia. 0.9x1.9mm (0.035"x0.075")
