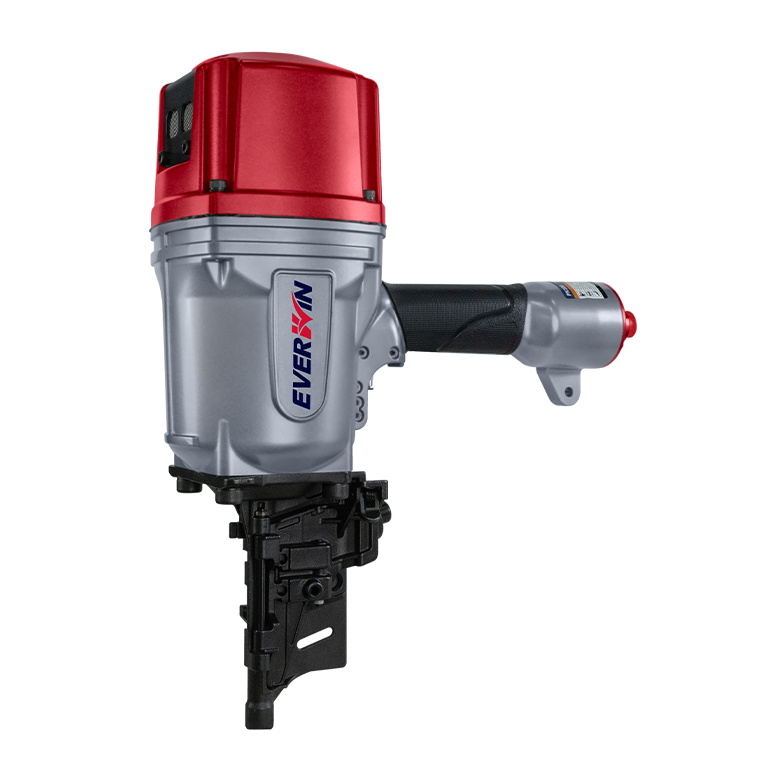

PN100B-162
Industrial 100mm (4") Wire Coil Nailer
The PN100B-162 Coil Nailer is designed to drive up to a 4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
- Wooden Pallet
- Drum and Crate Construction
APPLICATIONS
FEATURES
- AUTOMATION-GEARED
For machine-mounted applications
- PLUG & PLAY SETUP
Remote control valve assembly
- ACTUATION SPEED BOOSTED
Geared with high flow driver guide
- GEARED WITH HIGH FLOW DRIVER GUIDE
- DURABLE NOSE ANTI ABRASIVE DRIVER
- Geared with REMOTE CONTROL VALVE ASSEMBLY (RCVA1)
Optional: RCVA 90 Degree Elbow Fitting
- HIGH SPEED OPERATION
- 15 SHOTS/SECOND
- EXCLUSIVE COMPONENT TREATMENT
Special-treated nose and driver
TOOL SPECIFICATION
| Weight | 4.5 kgs (10 lbs) |
|---|---|
| Height | 410mm (16.4") |
| Width | 130mm (5.1") |
| Length | 350mm (13.8") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 1470 In-lbs |
| Air Consumption (@90psi) | 3.2L/cycle (6.8 cfm) |
FASTENER SPECIFICATION
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 3000+ |
| Nail Length | 65~100mm (2"-1/2"~4") |
| Nail Head Dia. | 6.5~7.5mm (0.256"~0.295") |
| Nail Shank Dia. | 3.3~4.1mm (0.131"~0.162") |
