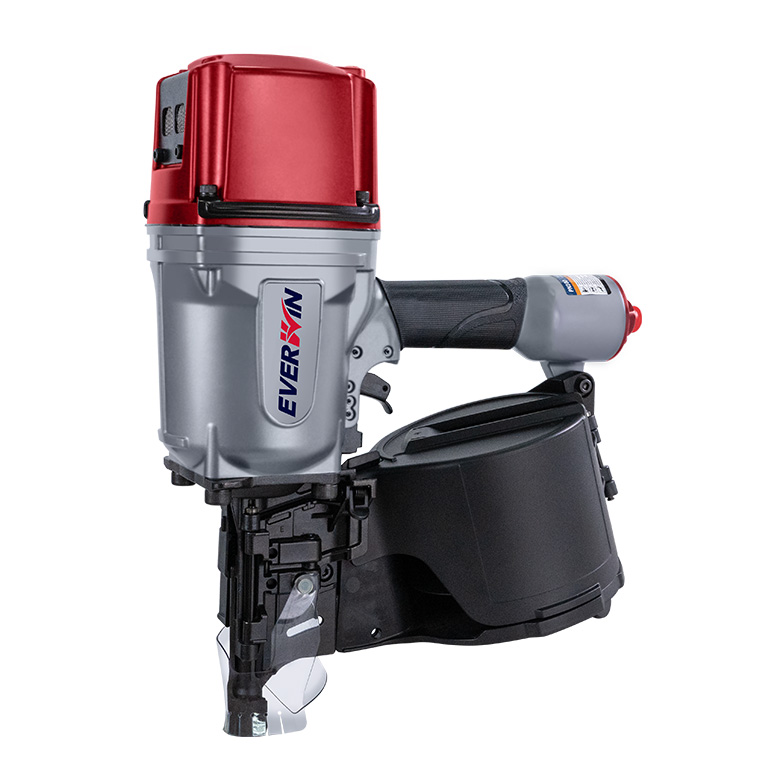

PN100B
INDUSTRIAL 100mm (4") Wire Coil Nailer
The PN100B Coil Nailer is designed to drive up to a 4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
- Wooden Pallet
- Drum and Crate Construction
APPLICATIONS
FEATURES
- POWERFUL FOR HEAVY DUTY APPLICATIONS
- TOOL HANGER & 3MM NOSE SHROUD AVAILABLEE
- METAL NAIL TRAY
Extremely reliable and wear-proof
- MACHINE MOUNTING COMPATIBLE
- HEAVY DUTY CONSTRUCTION Geared for

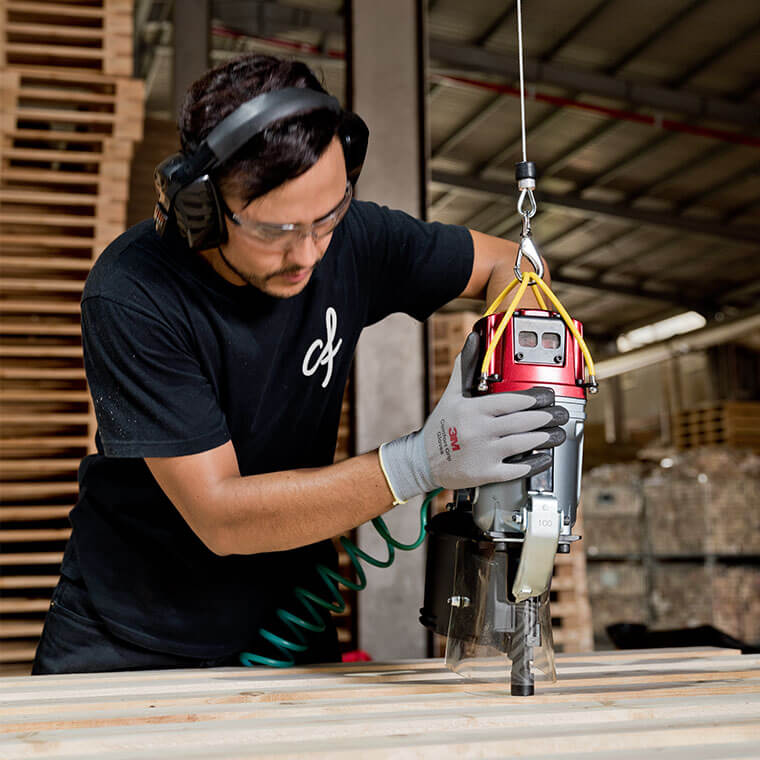

Pallet and crate production
- EXCLUSIVE COMPONENT TREATMENT
Special-treated driver and safety
- METAL BODY PROTECTOR
Helps prevent drag and tear wear on the tool frame
- OPTIONAL SHOCK-ABSORBENT SIDE HANDLE
- TWO TRIGGER OPTIONS AVAILABLE:
PN100B-ST (Sequential) / PN100B-CT (Contact)
TOOL SPECIFICATION
| Weight | 5.5 kgs (12.1 lbs) |
|---|---|
| Height | 417mm (16.4") |
| Width | 156mm (6.1") |
| Length | 338mm (13.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 1470 |
| Air Consumption (L/cycle @90psi) | 3.2 (6.8 cfm) |
FASTENER SPECIFICATION

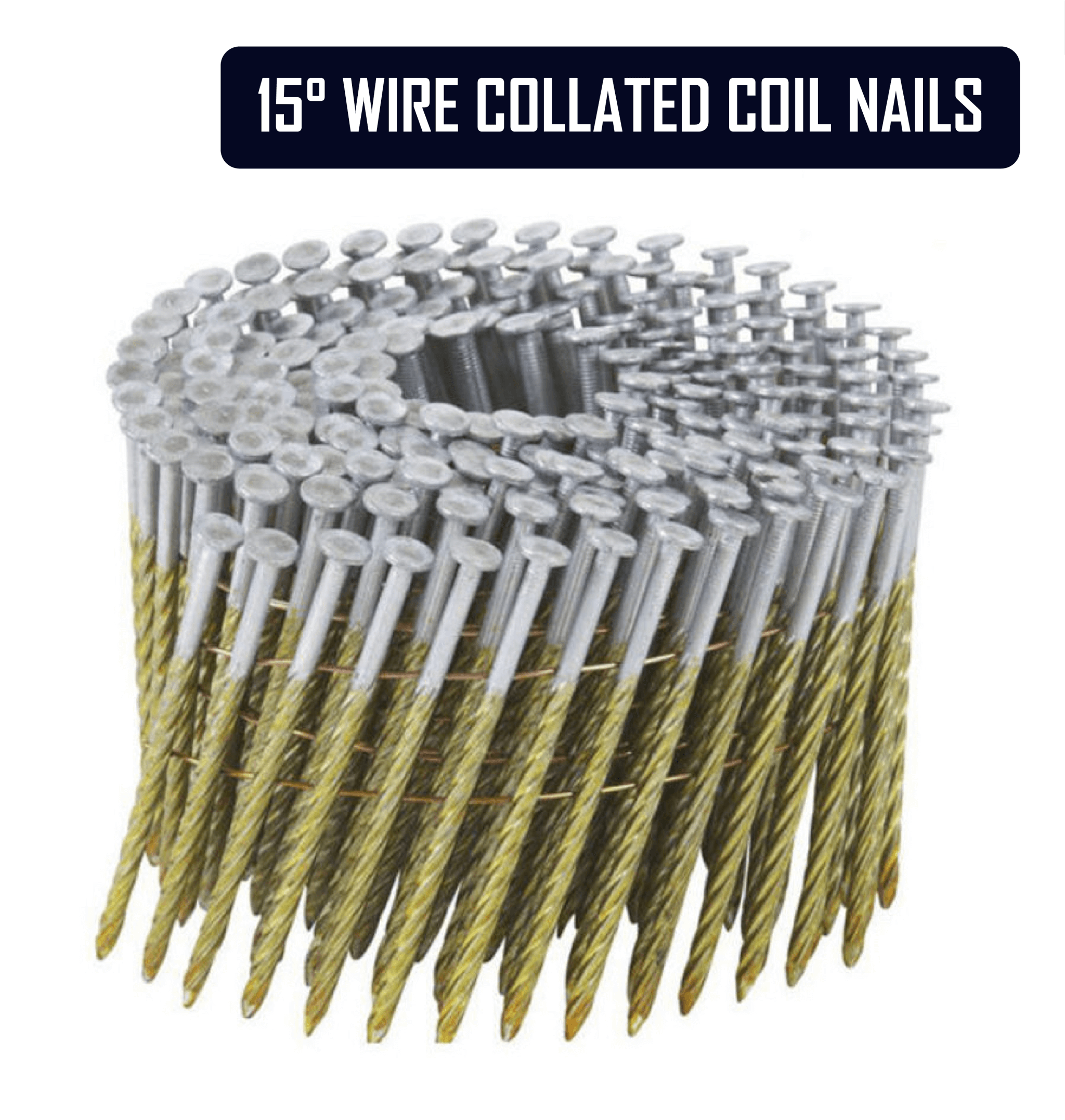

| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 200 ~ 300 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 65~100mm (2-1/2"~4") |
| Nail Head Dia. | 6.5~7.5mm (0.256"~0.295") |
| Nail Shank Dia. | 2.5~3.3mm (0.099"~0.131") |
