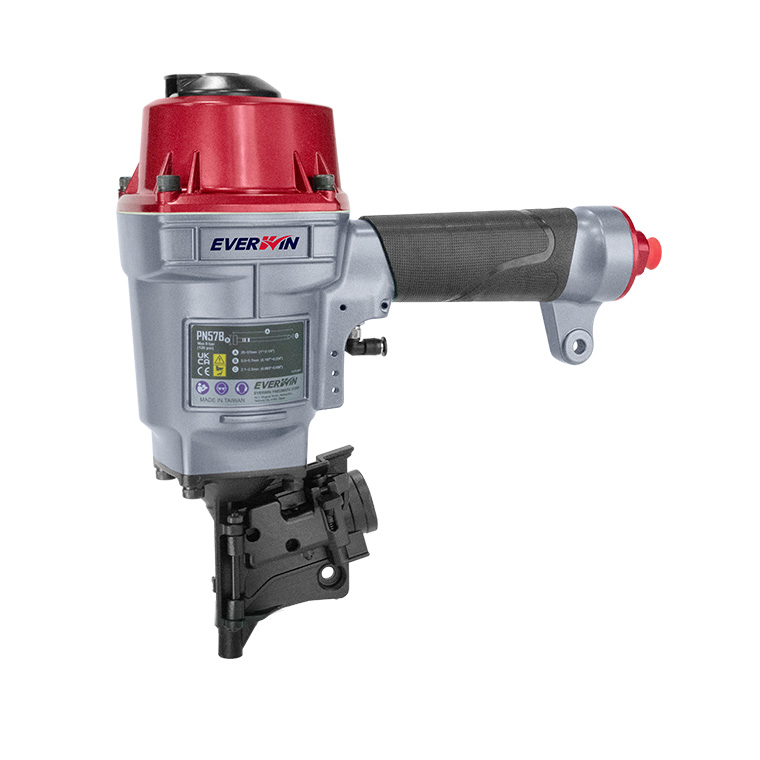

PN57BPAL

Industrial 57mm (2-1/4") Wire Coil Nailer
Icon 002 Icon 002 Icon 002 Icon 002 Icon 010 Icon 002
The PN57BPAL Coil Nailer is designed to drive up to a 2-1/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
    APPLICATIONS
  • Wooden Pallet, Drum and Crate Construction
INQUIRY

FEATURES

  • BODY PROTECTOR ON DURABLE STREAMLINE FRAME.
  • DURABLE NOSE AND ANTI-ABRASIVE DRIVER PROVIDES EXTENDED TOOL LIFE.
  • 360° MULTI DIRECTIONAL EXHAUST COVER.
  • Fast and powerful for heavy duty applications.

    • Four trigger options available :

    RCVA1 Straight Fitting Type (negative pressure)

    RCVA2 Elbow Fitting Type (negative pressure)

    RCVA3 Elbow Fitting Type (positive pressure)

    Trigger Block

    TOOL SPECIFICATION

    Weight 2.2 kgs (4.85 lbs)
    Height 274mm (10.8")
    Width 95mm (3.7")
    Length 270mm (10.6")
    Operating Pressure 5~8 bar (70~120 psi)
    Driving Power 439 In-lbs@100psi
    Air Consumption (@90psi) 1.13L/cycle (2.39 cfm)

    FASTENER SPECIFICATION

    Type 15° Wire Collated Nails
    Loading Capacity 3000
    Nail Length 25~57mm (1"~2-1/4")
    Nail Head Dia. 5.0~5.7mm(0.197"~0.224")
    Nail Shank Dia. 2.1~2.3mm (0.083"~0.090")
