PN65M-D

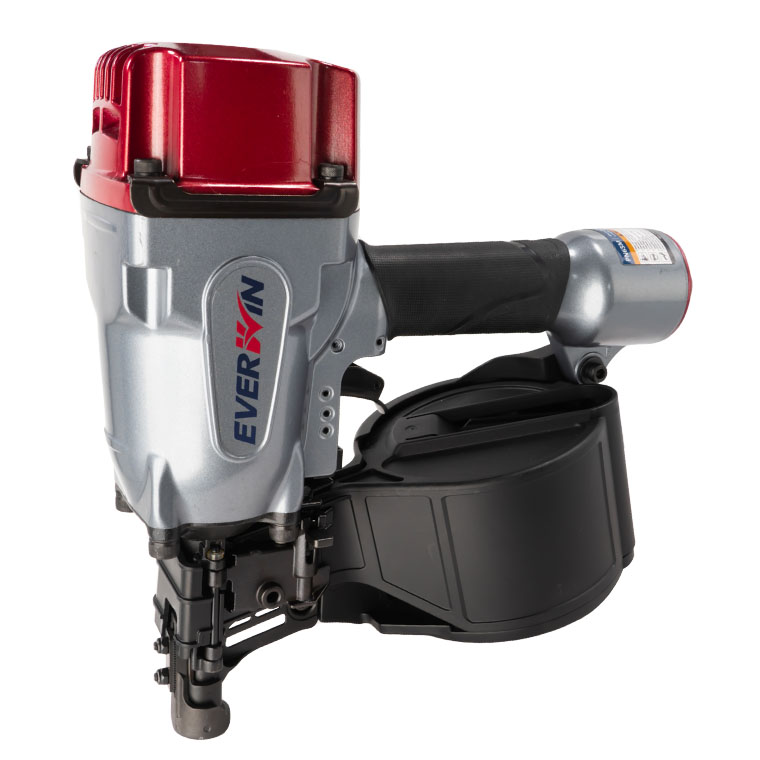

Depth-Adjustable Industrial 65mm (2-1/2") Wire Coil Nailer
Icon 002 Icon 002 Icon 002 Icon 002 Icon 002 Icon 002
The PN65M Coil Nailer is designed to drive up to a 2-1/2" nail with EXTRA POWER. Built for high speed operations and designed to handle the toughest production applications. Equipped with a heavy-duty bolted depth adjustment safety, this tool is the perfect combination of versatility and toughness.
    APPLICATIONS
  • Wooden Pallet
  • Drum and Crate Construction
INQUIRY

FEATURES

- HEAVY DUTY INDUSTRIAL GRADE DEPTH ADJUSTMENT

- SUPREME POWER-WEIGHT RATIO

- HIGH SPEED OPERATION

Actuates up to 15 CYCLES/SECOND

- METAL NAIL TRAY

Extremely reliable and wear-proof

- MACHINE MOUNTING COMPATIBLE

- HEAVY DUTY CONSTRUCTION

Geared for pallet and crate production

- EXCLUSIVE COMPONENT TREATMENT

Special-treated driver and safety

- METAL BODY PROTECTOR

Helps prevent drag and tear wear on the tool frame

- DRIVER GUIDE MINIMIZES MAINTENANCE COST

- TWO TRIGGER OPTIONS AVAILABLE:

PN65M-D-ST (Sequential) / PN65M-D-CT (Contact)

TOOL SPECIFICATION

Weight 2.8 kgs (6.2 lbs)
Height 311mm (12.2")
Width 128mm (5")
Length 300mm (11.8")
Operating Pressure 5~8 bar (70~120 psi)
Driving Power 680 In-lbs @100psi
Air Consumption (@90psi) 1.7L/cycle (3.6 cfm)

FASTENER SPECIFICATION

Type 15° Wire Collated Nails
Loading Capacity 225 ~ 300
Nail Length 38~65mm (1-1/2"~2-1/2")
Nail Head Dia. 5.7~7.2mm (0.224"~0.283")
Nail Shank Dia. 2.3~2.9mm (0.092"~0.113")
