SCN66B-ST
0-DEGREE CONSTRUCTION 65mm (2-1/2") Plastic Coil Nailer
The SCN66B-ST, driving up to a 2 1/2" nail is perfect for a wide range of siding applications. This tool drives smooth, ring, and screw shank coil nails in both wire and plastic sheet collation. With our patented "PRECISION NAILING TECH" the SCN66B-ST helps you do More, Easier and Faster.
- Subflooring
- Siding, Fencing
- Sheathing
- Manufactured Housing
APPLICATIONS
FEATURES
- ADJUSTABLE EXHAUST ENSURES WORKPLACE COMFORT.
- TRIGGER LOCK ENSURES WORKPLACE SAFETY.
- TOOL-FREE DEPTH ADJUST.
- PRECISION NAILING TECHNOLOGY MINIMIZES DRIVER MARK OCCURRENCES AND MAXIMIZES LINE OF SIGHT IN OPERATION.
- CUSHIONED RUBBER GRIP AND ERGONOMIC FRAME PROVIDES COMFORT AND BALANCE.
- METAL BELT HOOK FOR WORKPLACE CONVENIENCE.
- ROBUST NYLON MAGAZINE WITH INDUSTRY-LEADING DURABILITY.
．No-mar pad included.
．Two trigger options available :
SCN66B-ST (sequential) / SCN66B-CT (contact)

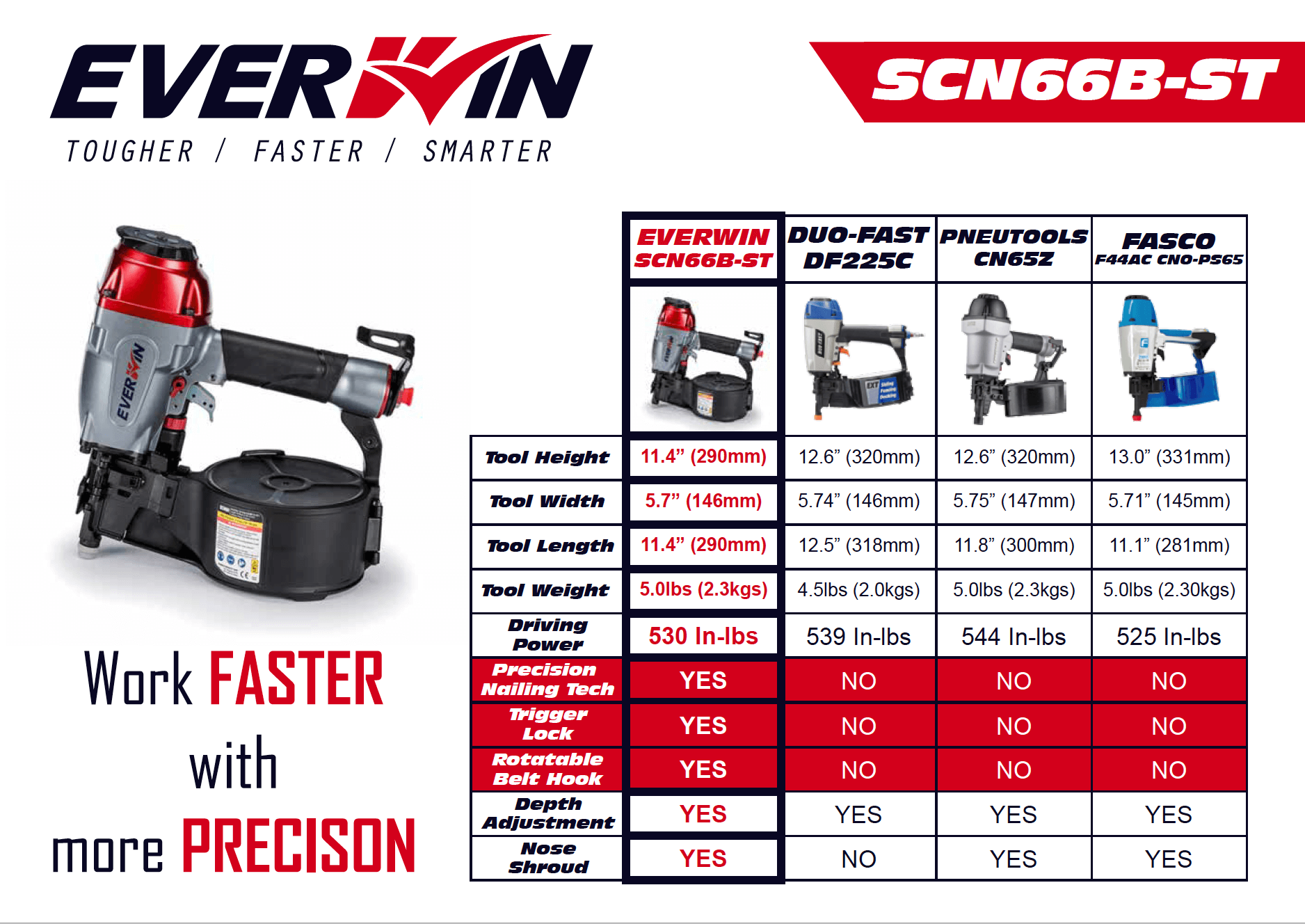

TOOL SPECIFICATION
| Weight | 2.3 kgs (5.2 lbs) |
|---|---|
| Height | 290mm (11.4") |
| Width | 146mm (5.7") |
| Length | 290mm (11.4") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 530 |
| Air Consumption (L/cycle @90psi) | 1.1 (2.3 cfm) |
FASTENER SPECIFICATION
| Type | 0° Plastic Collated Nails |
|---|---|
| Loading Capacity | 300 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 32~65mm (1-1/4"~2-1/2") |
| Nail Head Dia. | 5.5~6.0mm (0.216"~0.236") |
| Nail Shank Dia. | 2.0~2.8mm (0.080"~0.110") |
