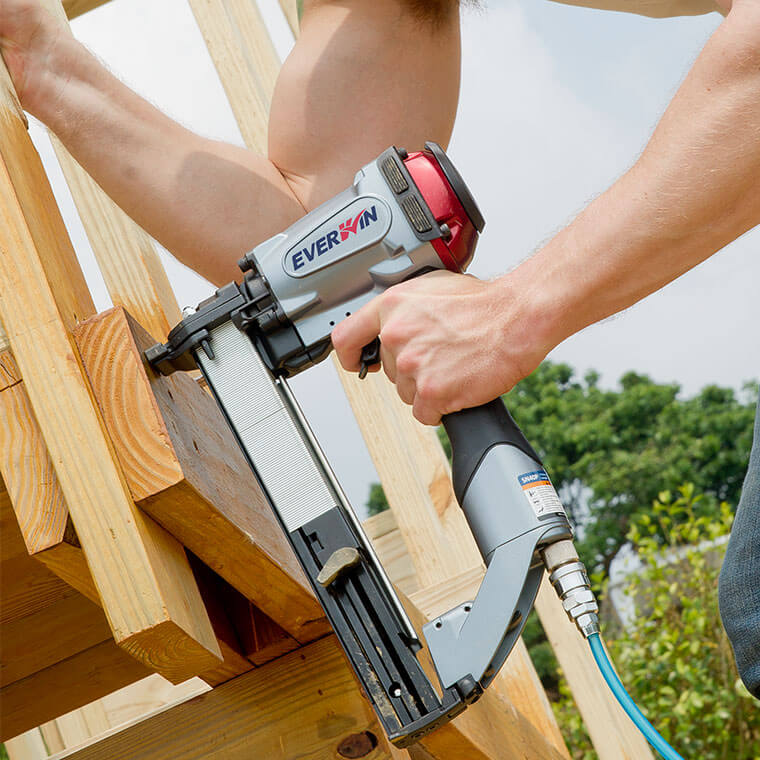

SN40GSW-14
INDUSTRIAL 40mm (1-9/16") Paslode GSW-14 14 Gauge Wide Crown Stapler
The SN40GSW-14 is the industry benchmark for industrial heavy wire staplers. Built of Magnesium frame and Investment-casted components, it combines class-leading power, durability, ergonomics, as an unrivaled professional tool.
- Furniture Frames, General Construction
APPLICATIONS
FEATURES
INDUSTRIAL JAM CLEARING
Exclusive rear jam-clearance design
JAM-PROOF TECHNOLOGY
Minimizes jams to help minimize operation downtime
ALL STEEL CONSTRUCTION
Investment-casted exhaust cover and end cap
TOOL SPECIFICATION
| Weight | 2.5 kgs (5.5 lbs) |
|---|---|
| Height | 251mm (9.9") |
| Width | 94mm (3.7") |
| Length | 363mm (14.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 369 |
| Air Consumption (L/cycle @90psi) | 0.8 (1.7 cfm) |
FASTENER SPECIFICATION
| Type | 14 Gauge Paslode GSW14 |
|---|---|
| Loading Capacity | 120 |
| Shank Type | Smooth |
| Staple Length | 19~40mm (3/4"~1-9/16") |
| Staple Crown Cap Width | 24.7mm (0.97") |
| Staple Wire Dia. | 2.1x1.8mm (0.083"x0.071") |
