SN50S4
INDUSTRIAL 50mm (2") Bostitch BCS4 16 GA. Medium Crown Stapler
The SN50S4 is the industry benchmark for industrial heavy wire staplers. Built of Magnesium frame and Investment-casted components. It combines class-leading power, durability, ergonomics, as an unrivaled professional tool.

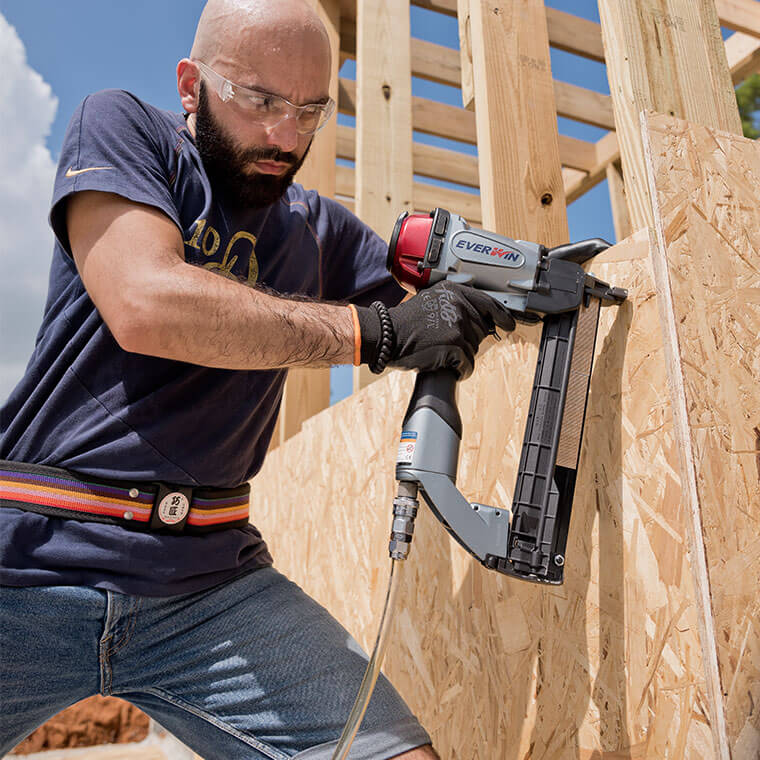

- Sheathing and Subflooring
- Furniture Framing
- Roof decking
- Crate and Box Assembly
- Pallets
- Fascia and Soffits
- Ridge Beam Assembly
APPLICATIONS
FEATURES
INDUSTRIAL JAM CLEARING
Exclusive rear jam-clearance design
JAM-PROOF TECHNOLOGY
Minimizes jams to help minimize operation downtime
ALL STEEL CONSTRUCTION
Investment-casted exhaust cover and end cap
INDUSTRY-LEADING ENERGY
396 in-lbs of driving power
FLEXIBLE TRIGGER OPTIONS
Available in sequential & trigger fire modes
AUTO CAP AVAILABLE
Full automatic version available (SN50S4A)
MAGNESIUM HOUSING
Light in weight yet durable
HIGH SPEED OPERATION
Actuates up to 15~20 CYCLES/SECOND
LONG MAGAZINE AVAILABLE
Available with double length magazines (Model Number: SN50S4LM)
TOOL SPECIFICATION
| Weight | 2.3 kgs (5.1 lbs) |
|---|---|
| Height | 272mm (10.7") |
| Width | 94mm (3.7") |
| Length | 363mm (14.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 397 |
| Air Consumption (L/cycle @90psi) | 0.9 (1.9 cfm) |
FASTENER SPECIFICATION
| Type | 16 GA. Bostitch BCS4 / Atro 16 NC |
|---|---|
| Loading Capacity | 160 |
| Shank Type | Smooth |
| Staple Length | 25~50mm (1"~2") |
| Staple Crown Width | 12.5mm (1/2") |
| Staple Wire Dia. | 1.6x1.4mm (0.062"x0.055") |
